UAT-505-EUR
Key Features
Functions
- Locates underground energized and de-energized wires and cables
- Locates underground metal pipes
- Multiple tracing modes for locating and tracing energized and de-energized utilities in a variety of applications: Power Mode, Radio Mode, Induction Mode and Direct Test Leads Connection Mode (de-energized utilities only)
Product information
- Underground Utility Locator Kit
- Detect and measure depth of buried pipes and cables
- Depth measurement up to 6 m, detect and trace utilities buried up to 30 m deep (Direct Test Leads Connection Mode only)
- Receiver features a high-contrast display with an automatic backlight and semi-automatic gain control for fast signal location and control

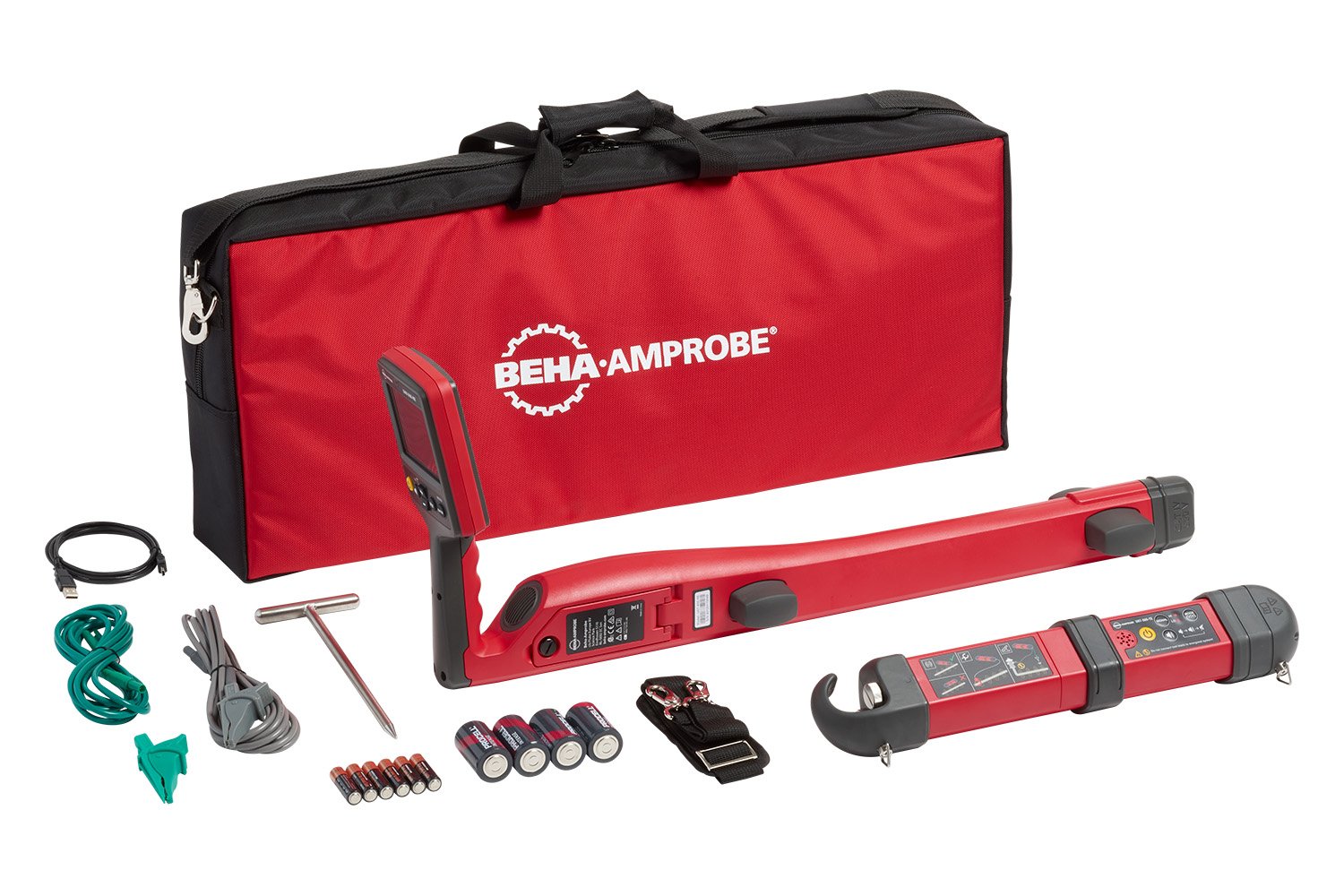

- Complete ready-to-use kit: Receiver, Transmitter, test leads, batteries and carrying case
Product highlights
- The UAT-505-EUR can be used in different modes for optimal tracing in many situations.
- Receiver
- Power Mode locates energized wires with a 50/60 Hz frequency. The Receiver alone detects the electromagnetic fields emitted by buried energized lines conducting currents.
- Radio Mode uses the Receiver to detect radio waves coming from cellular towers, radio stations, etc. that are picked up and carried by underground metal objects, such as cables or pipes.
- Receiver + Transmitter
- Induction Mode uses the Transmitter to wirelessly induce a signal into a buried pipe, cable, or wire. The Receiver then detects the signal carried by the buried utility.
- If it is not possible to gain access to a cable for making an electrical contact or it is not safe to do so, the optional Signal Clamp provides an efficient and safe method of applying a locate signal to a cable.
- Note: The UAT-500-TE Transmitter should never be connected to an energized circuit. The Amprobe UAT-600-TE Transmitter, safety rated CAT IV 600 V, can be safely used to connect to energized circuits.
- Includes:
- UAT-600-RE Receiver

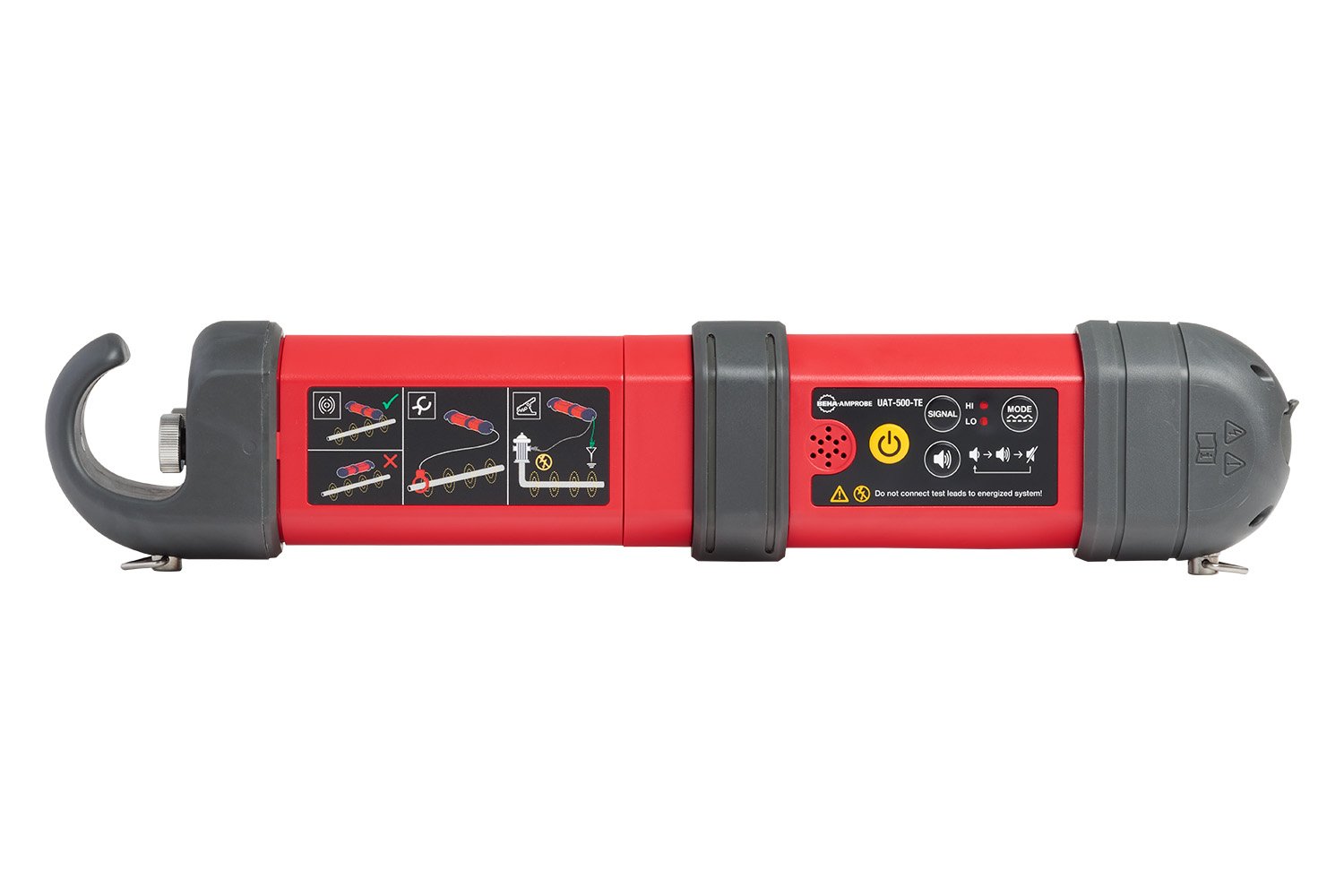

- UAT-500-TE Transmitter
- CC-UAT-500-EUR Carrying Case
- TL-UAT-500 Test Leads Kit
- 6 x AA Batteries
- 4 x D Batteries
- User Manual
- TL-UAT-500 Test Leads Kit includes:
- Green test lead with detachable green alligator clip
- Gray test lead with permanently attached gray alligator clip
- Ground stake
Article No. 5263037
Where to BuyProduct Overview
Increase productivity on the job site with precise and accurate locating. The Beha-Amprobe UAT-505-EUR Underground Utility Locator Kit is the rugged, economical solution for locating underground energized and de-energized wires, cables and pipes. The Transmitter utilizes the proven 33 kHz frequency, which is ideal for most locating applications. With the Receiver, trace the signal in Induction or Direct Test Leads Connection Modes. The Receiver features fast sound and meter response and easy de
