AF-600-EUR
Key Features
Functions
- Identify any point of leakage around a cable
- Locate cable and wire ground faults, sheath faults or pipeline coating defects, where the utility is in direct contact with the ground
- Find the exact point where metal is touching the ground and power is leaking, ie, a shield is rusted or a rubber buffer is broken, creating noise on a cable
Product information

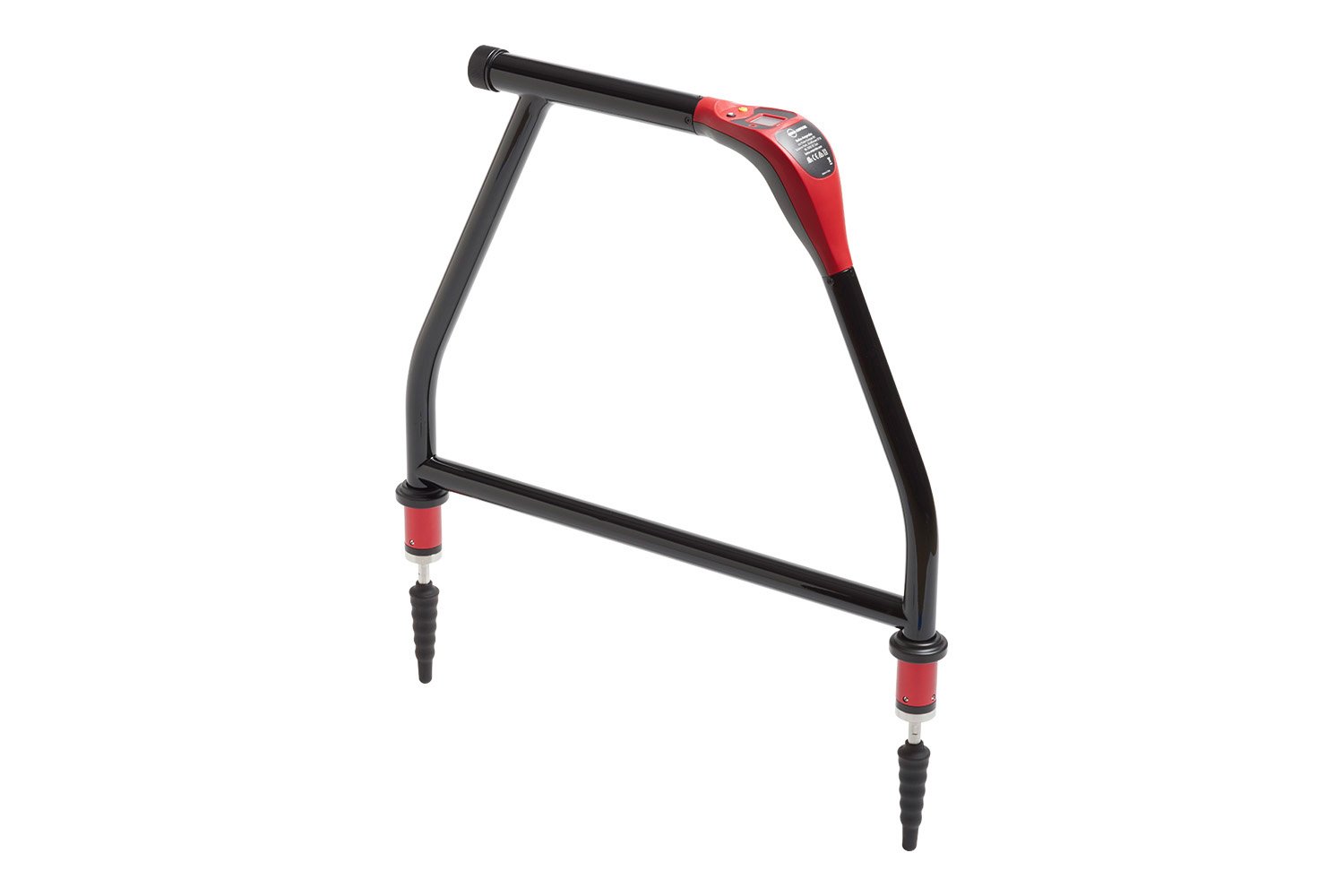

- A-Frame Ground Fault Locator
- Advanced technology and digital signal processing makes pinpointing process fast, accurate and clear:

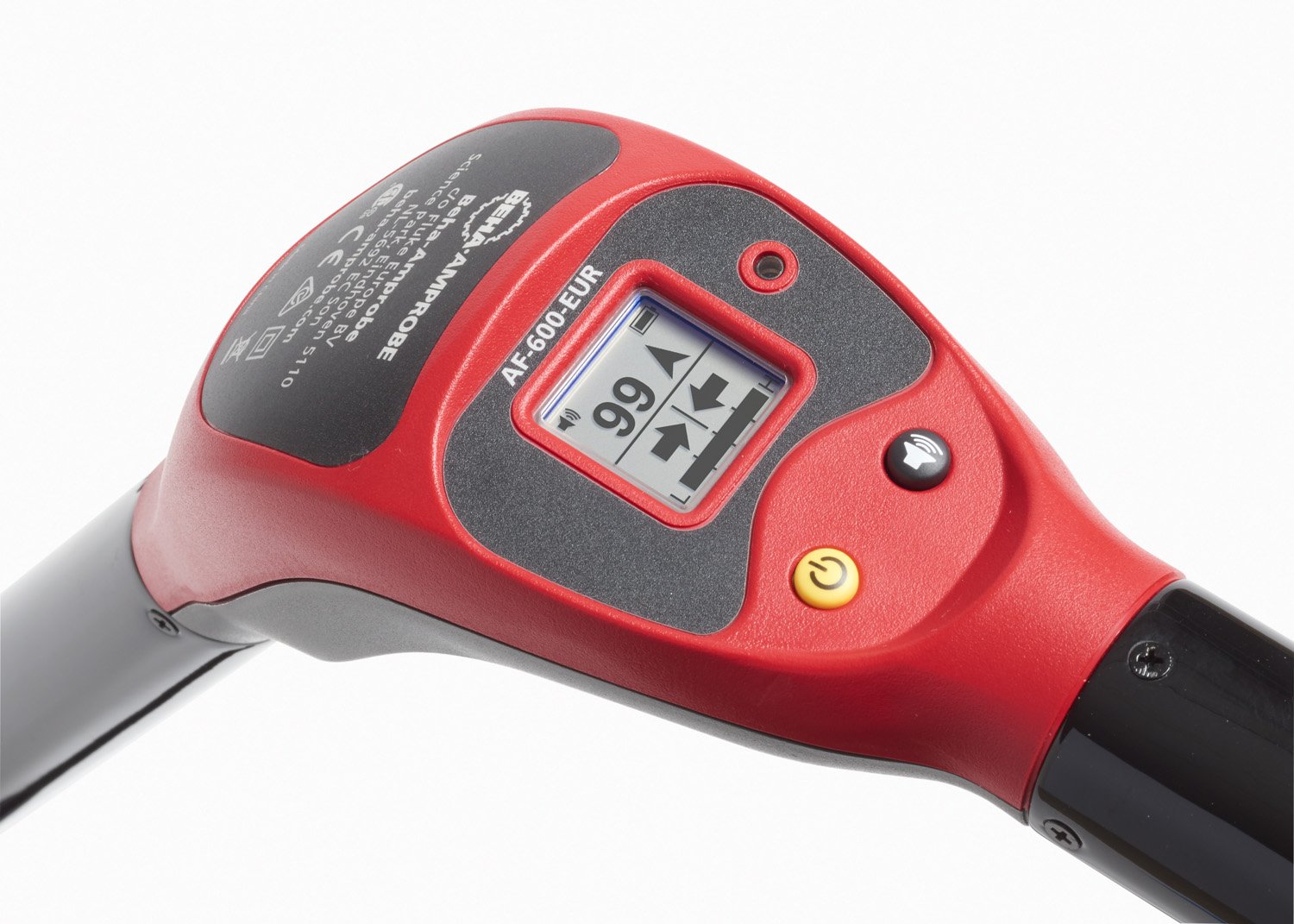

- Compass guidance with numeric fault field strength indicates the direction of the fault
- Distance sensitive left and right arrows guides the user to precisely follow the path of the buried utility
- Automatic gain control quickly detects tracing signal and precisely adjusts the A-Frame sensitivity
- Adjustable volume controls
Product highlights

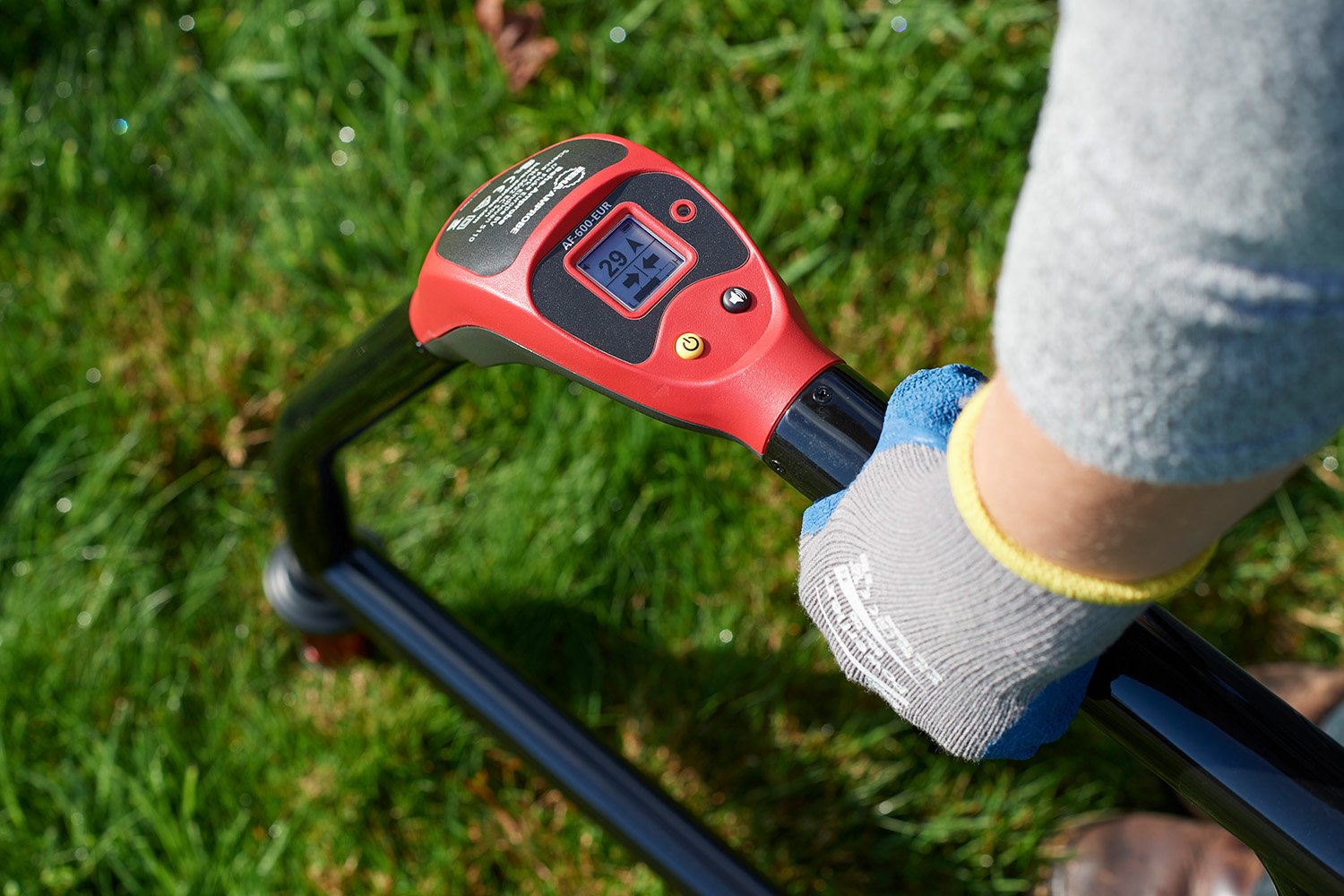

- Clearly view the auto back light LCD display in bright sunlight and all other outdoor conditions

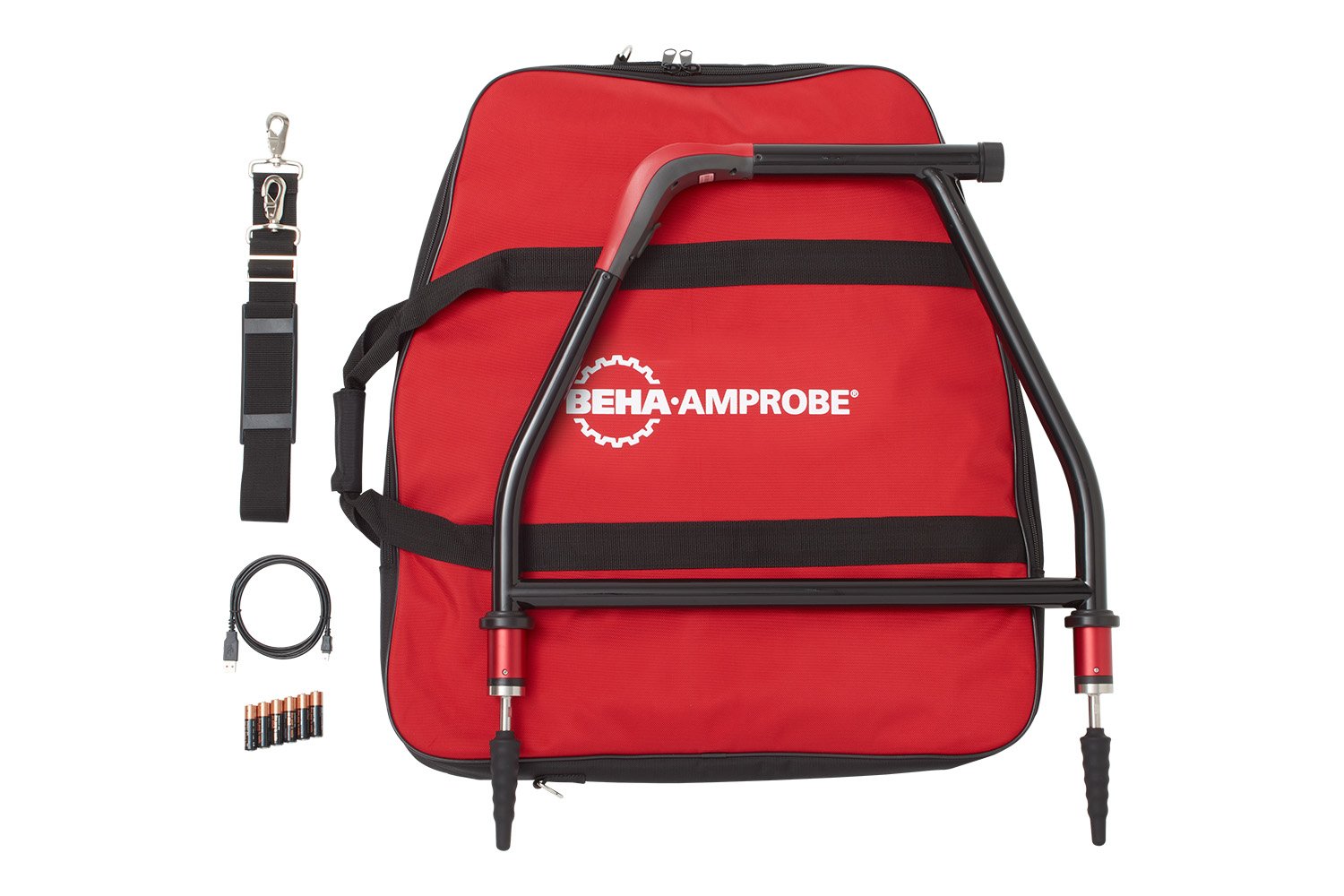

- The AF-600-EUR A-Frame comes complete with batteries and a carrying case
Article No. 4994583
Where to BuyProduct Overview

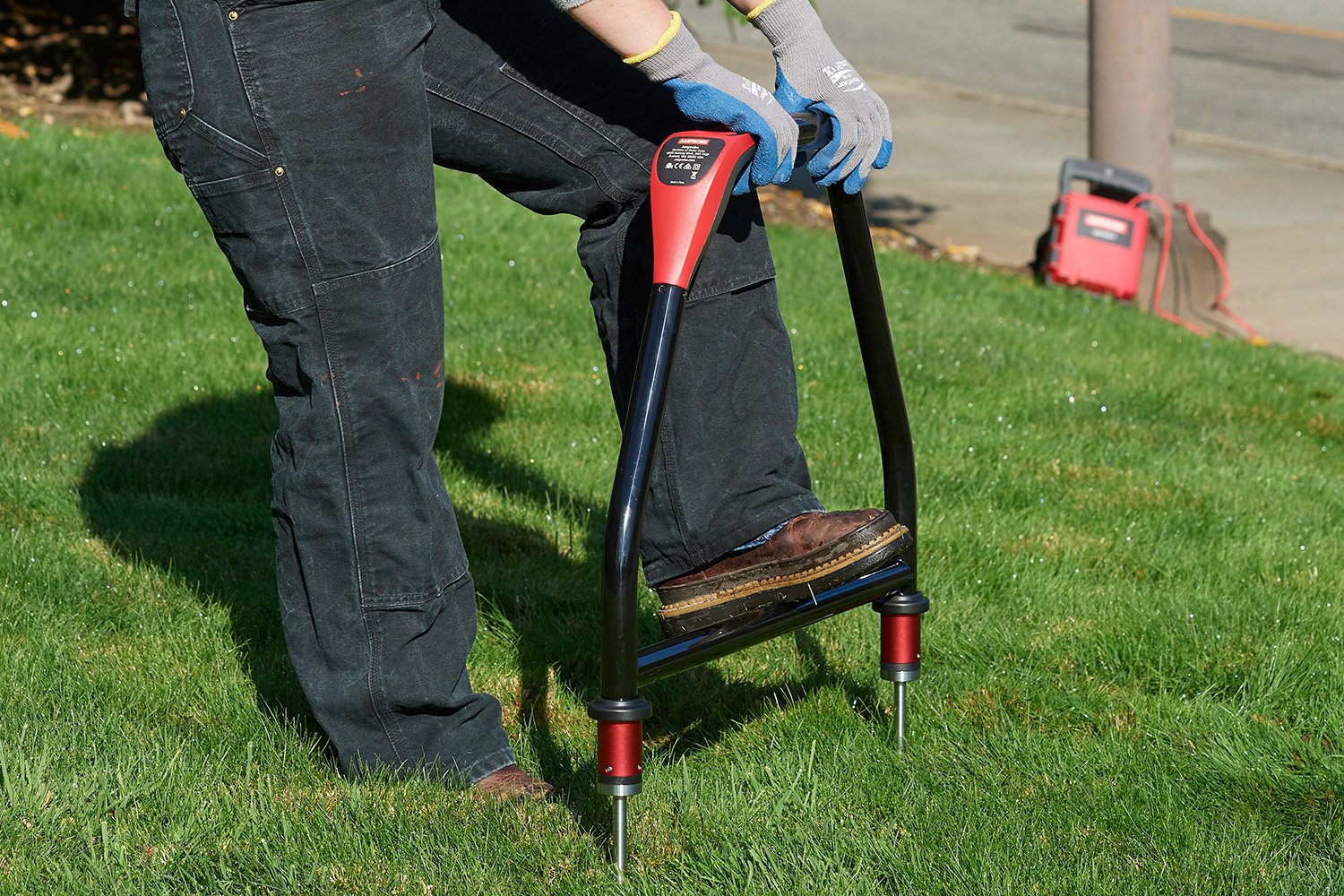

The AF-600-EUR A-Frame is designed to be used with the UAT-600-EUR Series Underground Utilities Locator Kits Set up the UAT-600-TE Transmitter to apply a fault find signal to the utility under test, the AF-600-EUR A-Frame receives the signal and locates the place of the fault. The AF-600-EUR will pinpoint where a cable metal conductor (either a sheath or a metallic conductor of the wire) touches the ground and can also detect other conductors to ground faults such as pipeline coating defects.
