AT-8030-EUR
Key Features
Functions
- Trace Energized and De-energized wires in walls, ceilings, floors and tight spaces
- Identify breakers and fuses
- Pinpoints shorts and opens
- Non-contact voltage mode and passive tracing
- Ideal for older industrial environments where wire locations are not well documented
- RCD-protected circuit wire tracing
- Find breaks, openings, and shorts
- Trace:
- wires in non-metallic pipes and conduits
- wires in metal conduit
- shielded wires
- underground wires
- low voltage wires and data cables
- Sort Bundled Wires

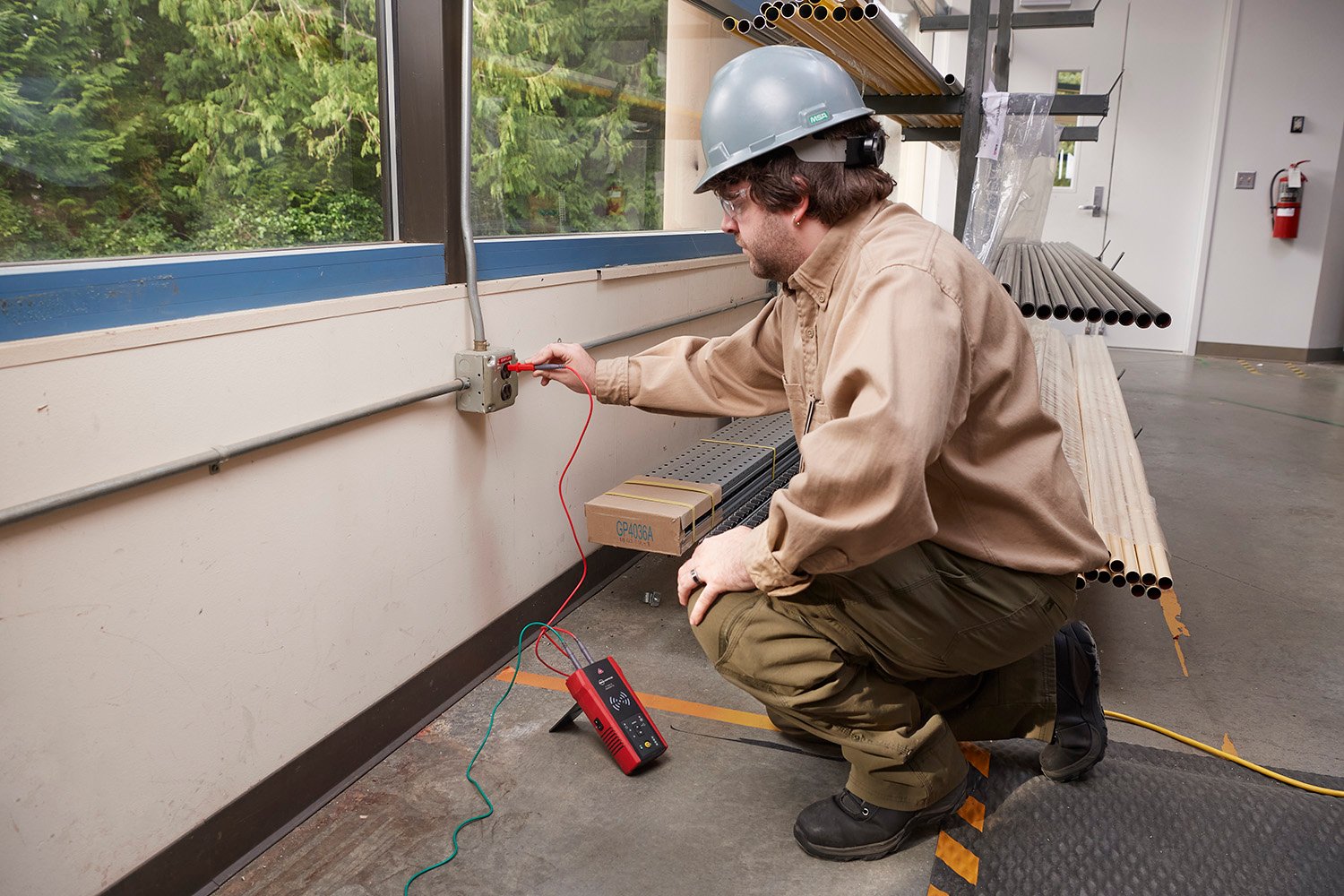

- Map a Circuit using Test Leads Connection
- Trace Breakers/Fuses on Systems with Light Dimmers
- Signal Clamp - Closed Loop/Mapping Circuits (CT-400-EUR Signal Clamp included in the AT-8030-EUR Kit only)
Product information
- Advanced Industrial Wire Tracer
- Three power modes
- "High" power mode for normal circuits
- "Low" power mode for precision tracing in difficult areas
- "Loop" power mode provides a boosted signal using the signal clamp
- Two automatically selected frequency modes for optimal tracing on energized and de-energized circuits
- Optional CT-400-EUR Signal Clamp for inducing signal into wires without access to bare conductors (included in the AT-8030-EUR Kit only)
- Embedded help screens for easy, error free set-up
- Set consisting of transmitter and receiver in a stable, shock-proof case
- Clear, easy-to-follow instruction manual with application examples
Product highlights
- High resolution 89 mm (3.5 in) TFT LCD color display

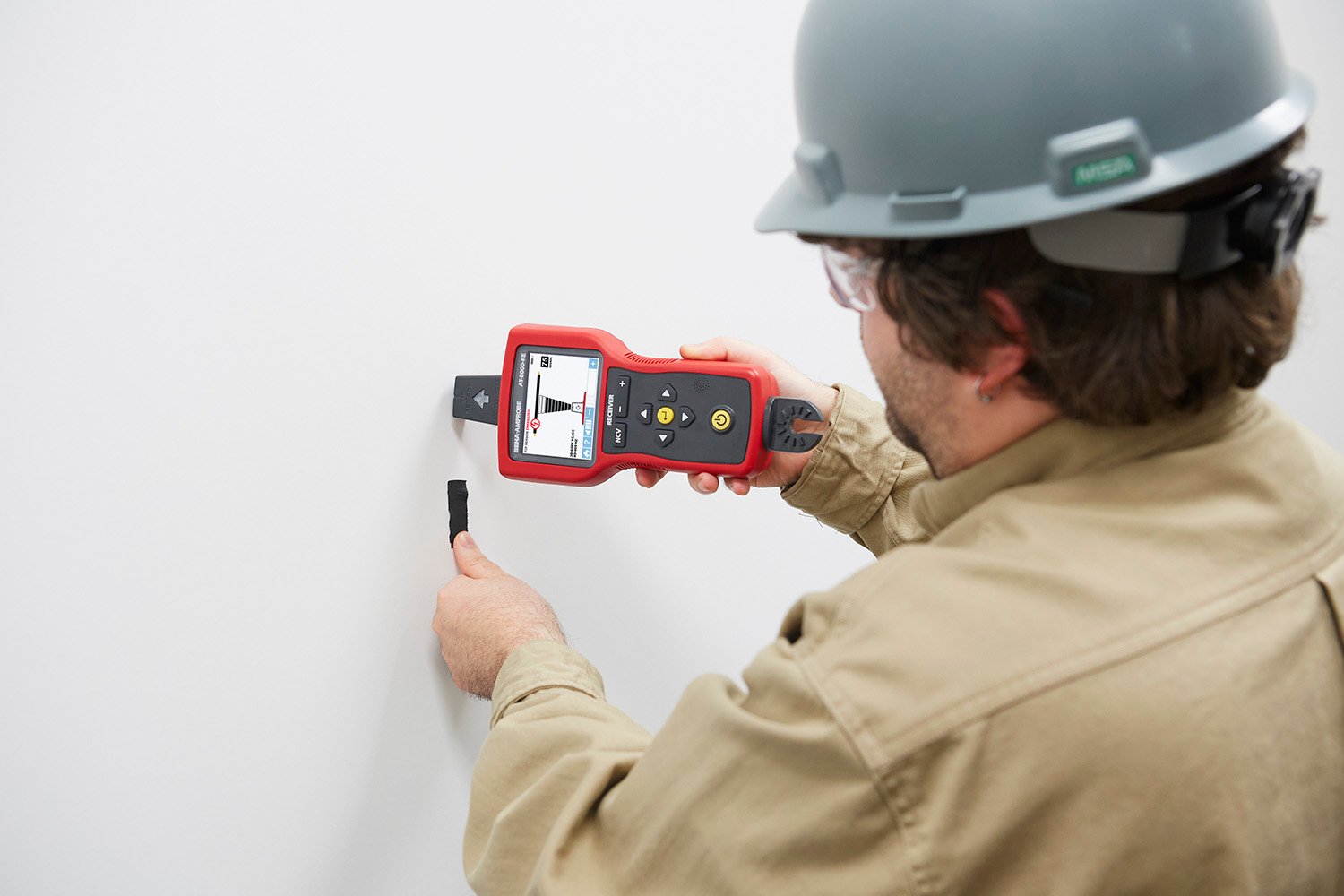

- Smart Sensor™: Quickly and easily determine the precise direction and location of energized wires in walls, floors and ceilings with the patented Smart Sensor™.
- Tip Sensor: The shape of the Tip Sensor allows tracing in hard to reach areas, corners & tight spaces, as well as precise circuit breaker and fuse identification.
- CAT IV 600 V Safety Rated
- Hot Stick Connection

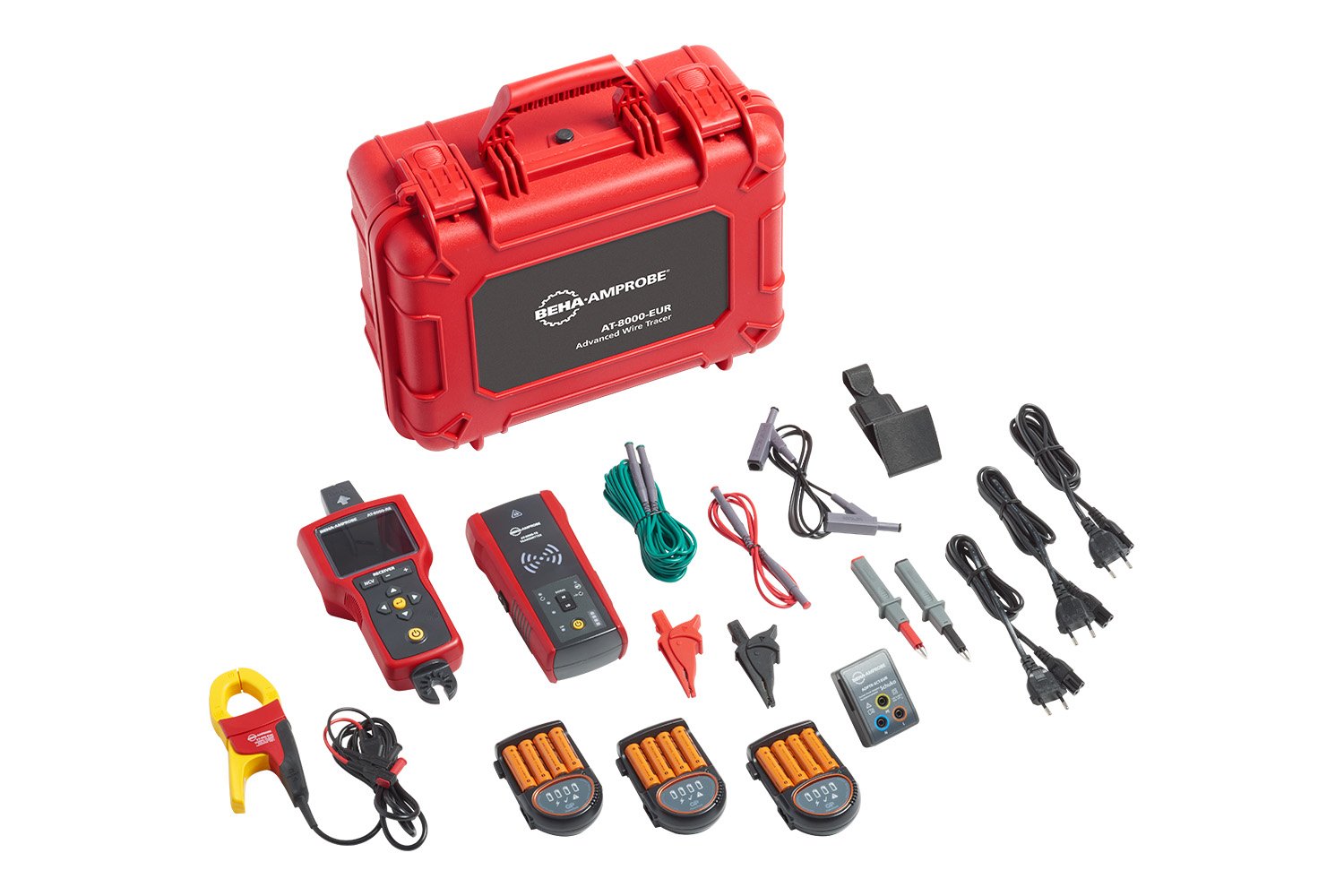

- *Kit Contents:
- 1x AT-8000-RE Receiver
- 1x AT-8000-TE Transmitter
- 1x TL-8000-EUR Test Lead And Accessory Kit
- 1x CC-8000 Hard Carrying Case
- 1x User Manual & QSG
- 3x Battery Chargers
- 12x Rechargeable Batteries
- 1x ADPTR-SCT-xx Socket adapter
- 1x CT-400-EUR Signal Clamp
- 1x HS-1 Magnetic Hanger
- *AT-8030-EUR Article No. 5088797

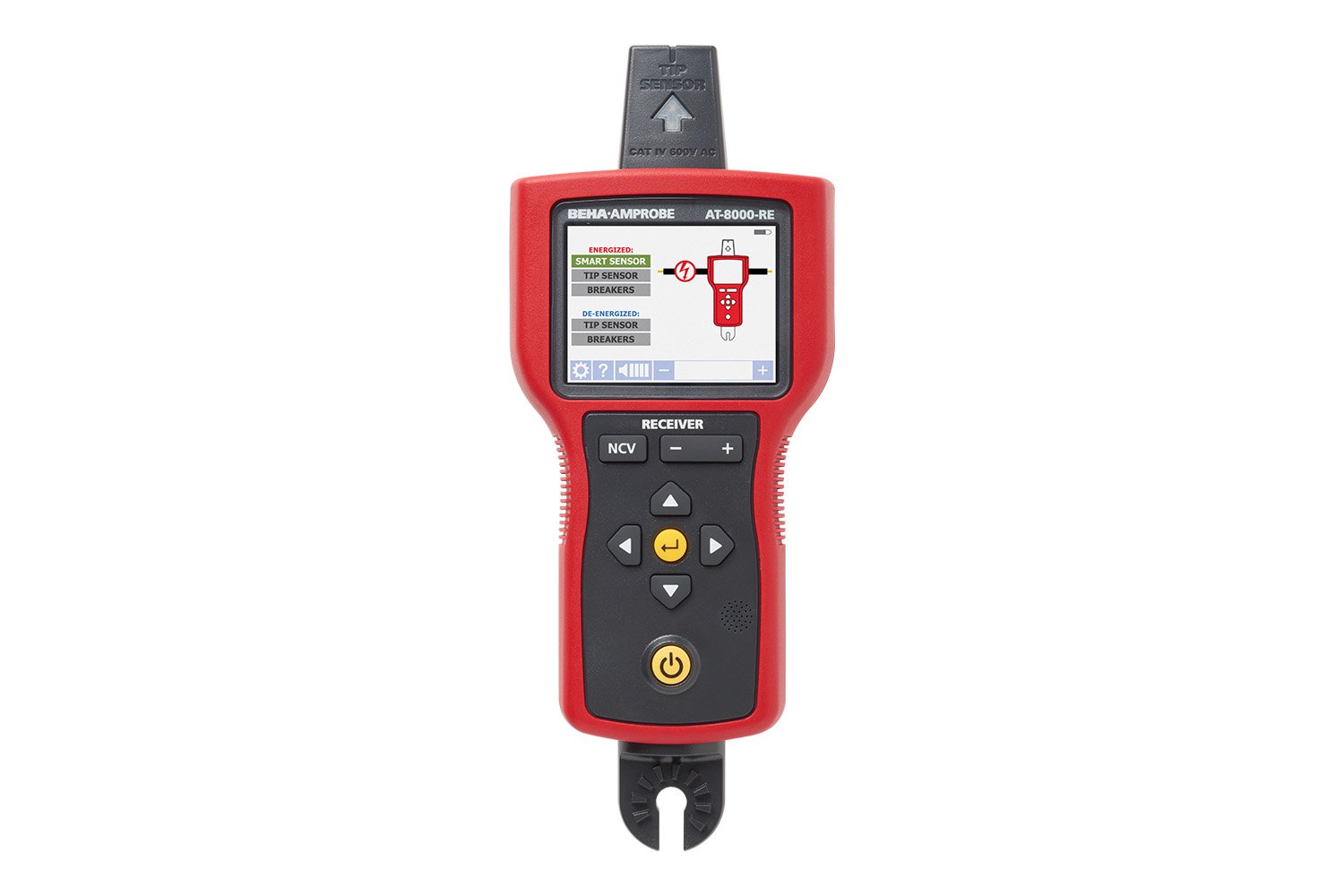

- AT-8000-RE Article No. 5088822 (Receiver)

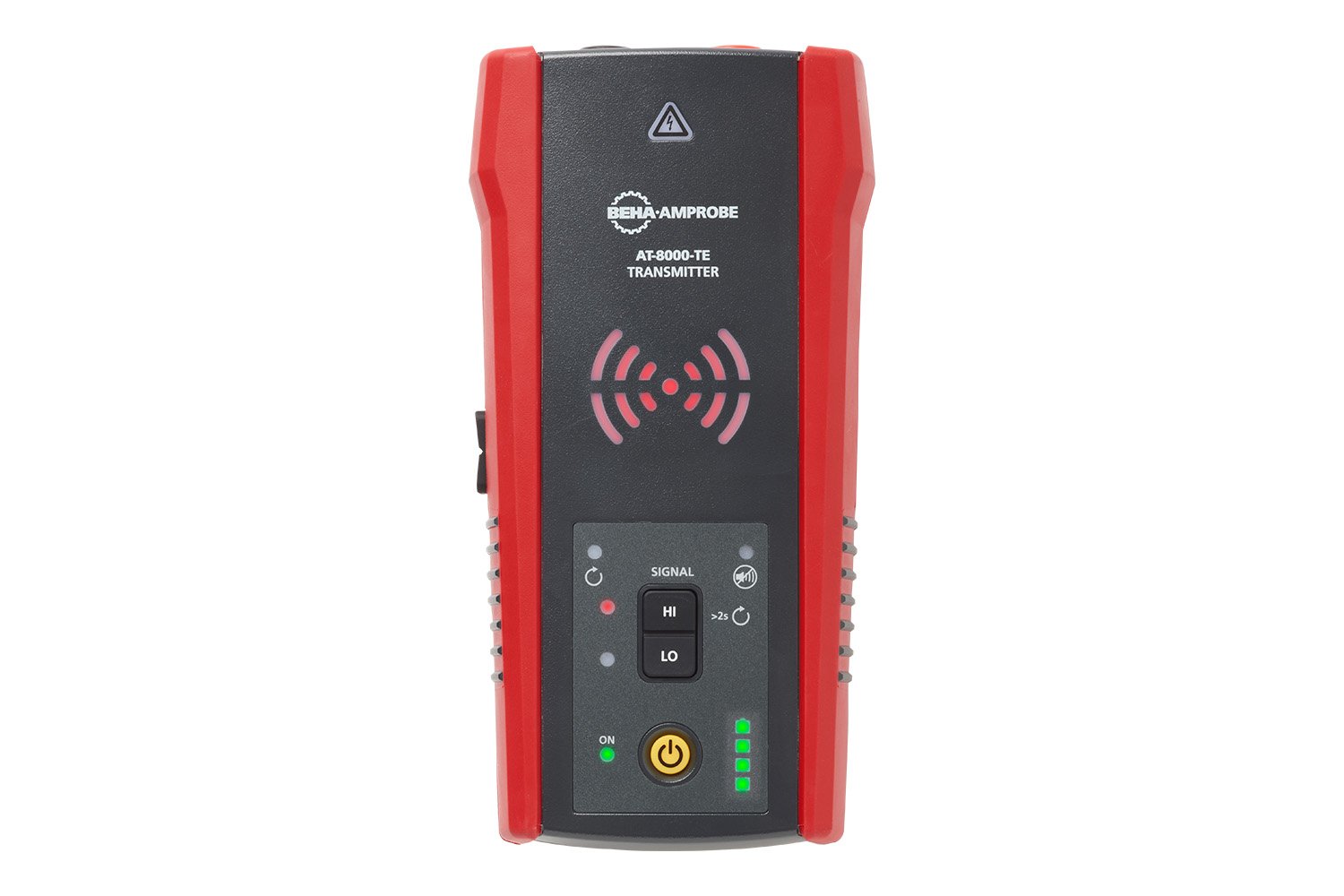

- AT-8000-TE Article No. 5088831 (Transmitter)
- CT-400-EUR Article No. 4868033 (Signal Clamp)
Product Overview
CAT IV 600 V Safety Rated for Industrial Environments and Electrical Systems Patented **Smart Sensor™** displays the location and orientation of energized wires Designed to keep electricians safe - **CAT IV 600 V** rated for the highest protection available on any wire tracer. Electricians are protected from the most dangerous level of transient overvoltage spikes up to 8,000 V that are known to occur in industrial environments.
