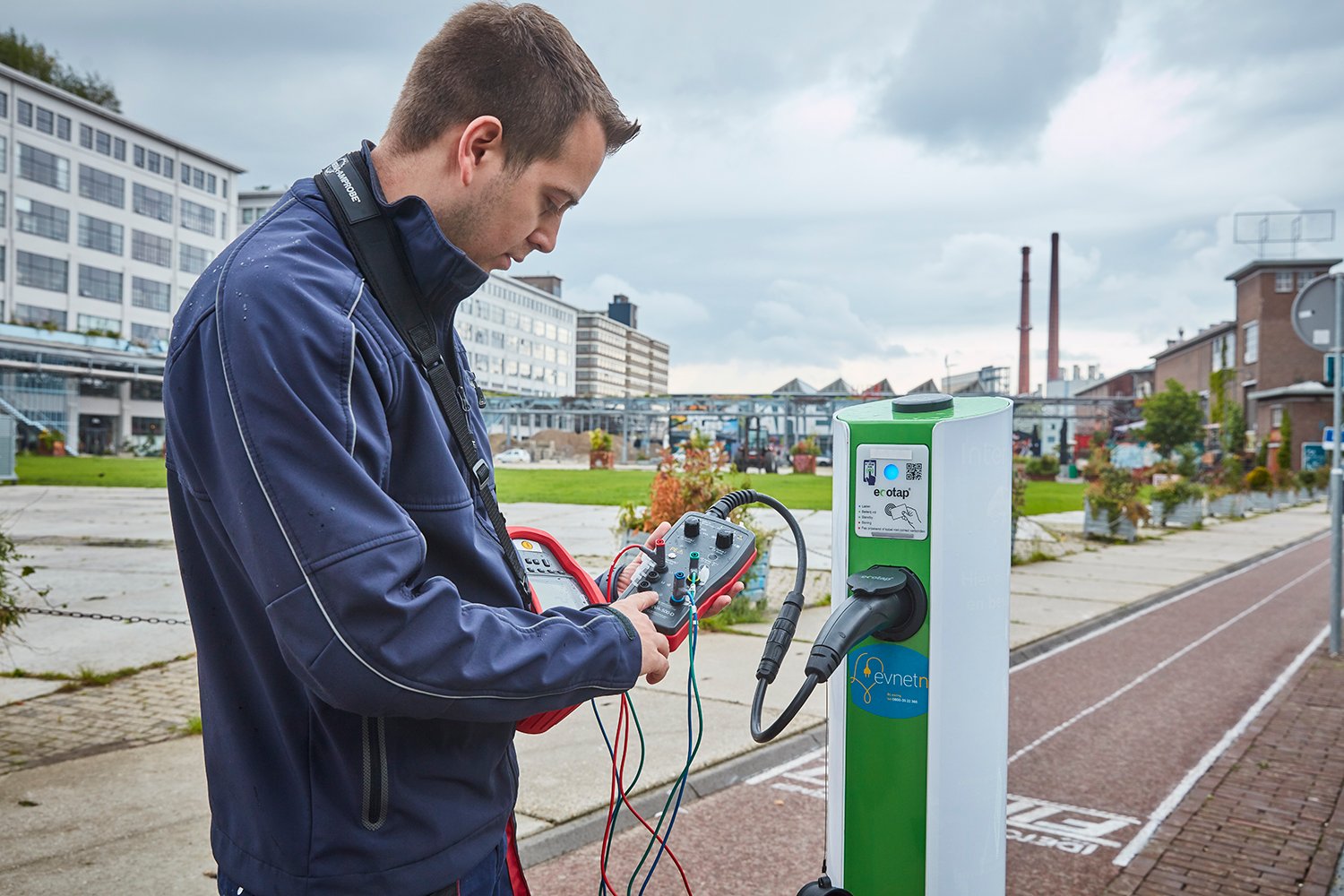

EV-520-F

Key Features

Functions

PE Pre-Test: With this safety feature the PE conductor can be tested for possible presence of dangerous voltage against earth.
Proximity Pilot (PP) state “Cable Simulation”: With PP State rotary switch the adapter can simulate various current capabilities of charging cables.
Control Pilot (CP) state “Vehicle Simulation”: With CP State rotary switch selector various charging states can be simulated.
Simulation of CP error “E”
Simulation of PE error (Earth fault)

Product information

Test Adapter Kit for Electric Vehicle Charging Stations
Suitable to vehicle charging stations with charging mode 3
EV-connectors for type 2 and type 1

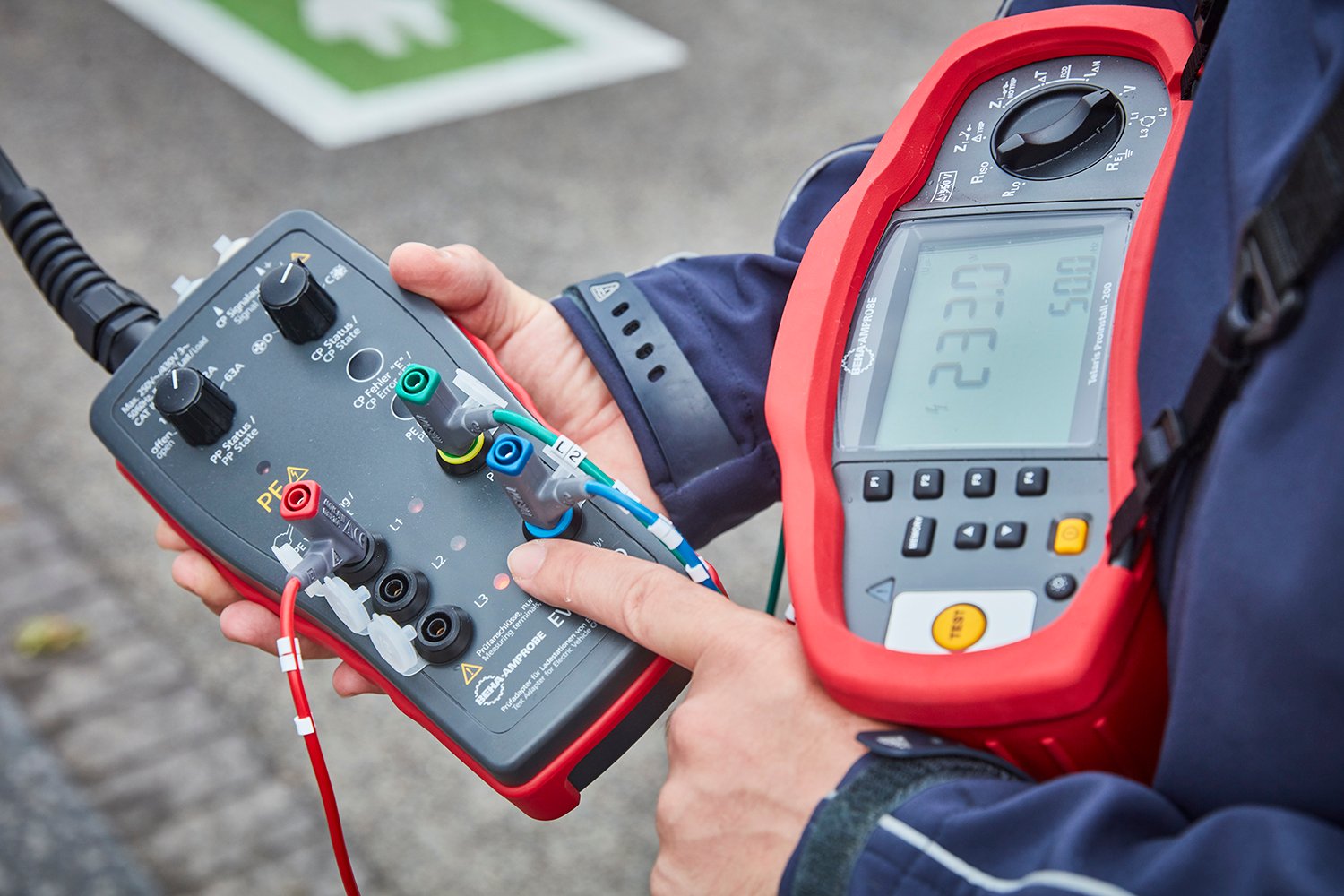

Measuring terminals L1, L2, L3, N and PE to connect test device like installation tester to perform safety and functional tests.
Terminals for CP signal output to check communication between adapter (=simulated electrical vehicle) and charging station.

Product highlights

Separate phase indication by three LED lamps for easy check if voltage is present.

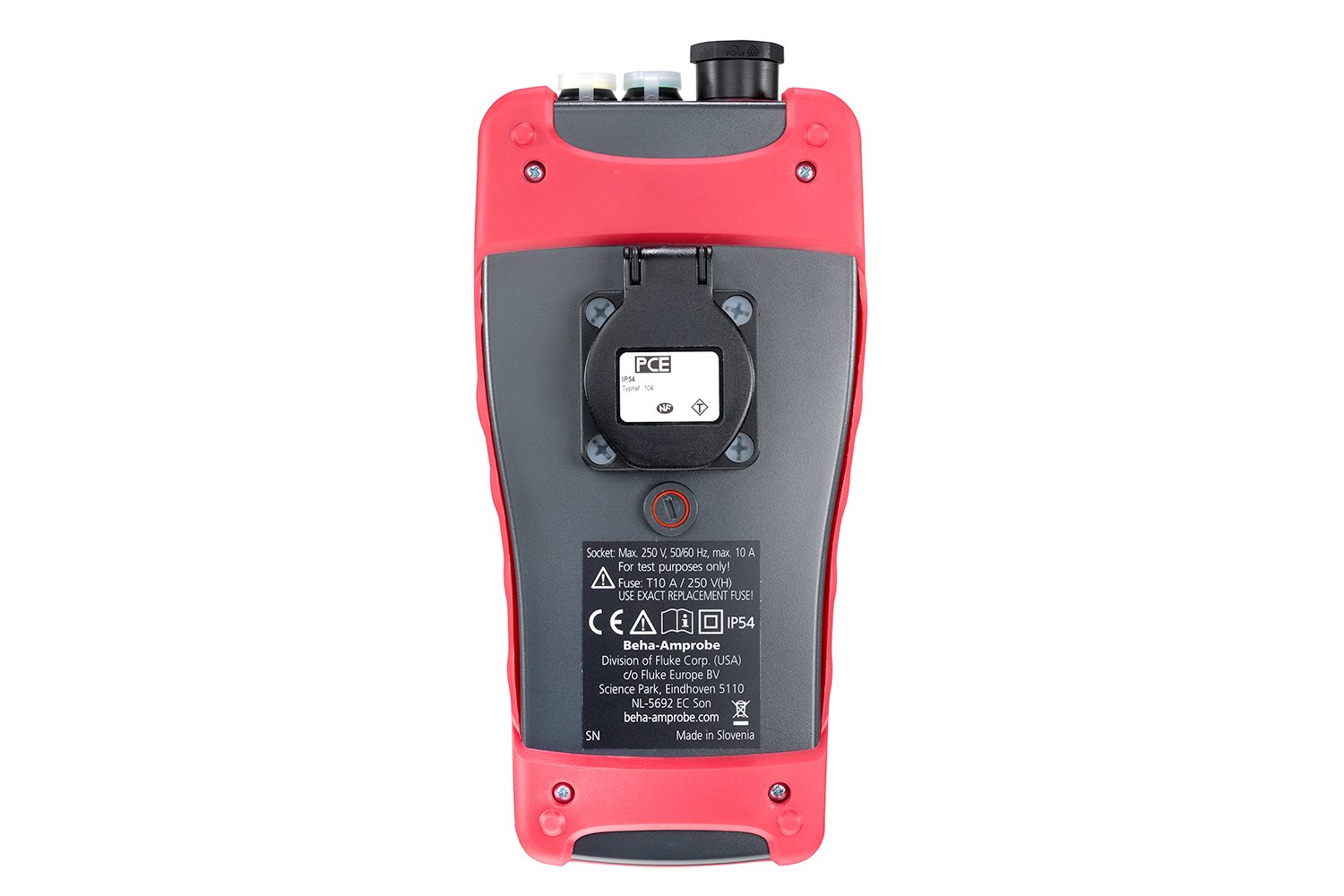

Mains socket offering the possibility to connect an external load to check if the electric power meter works and counts in the right manner.
IP 54 rating - Dust and splashing water protected

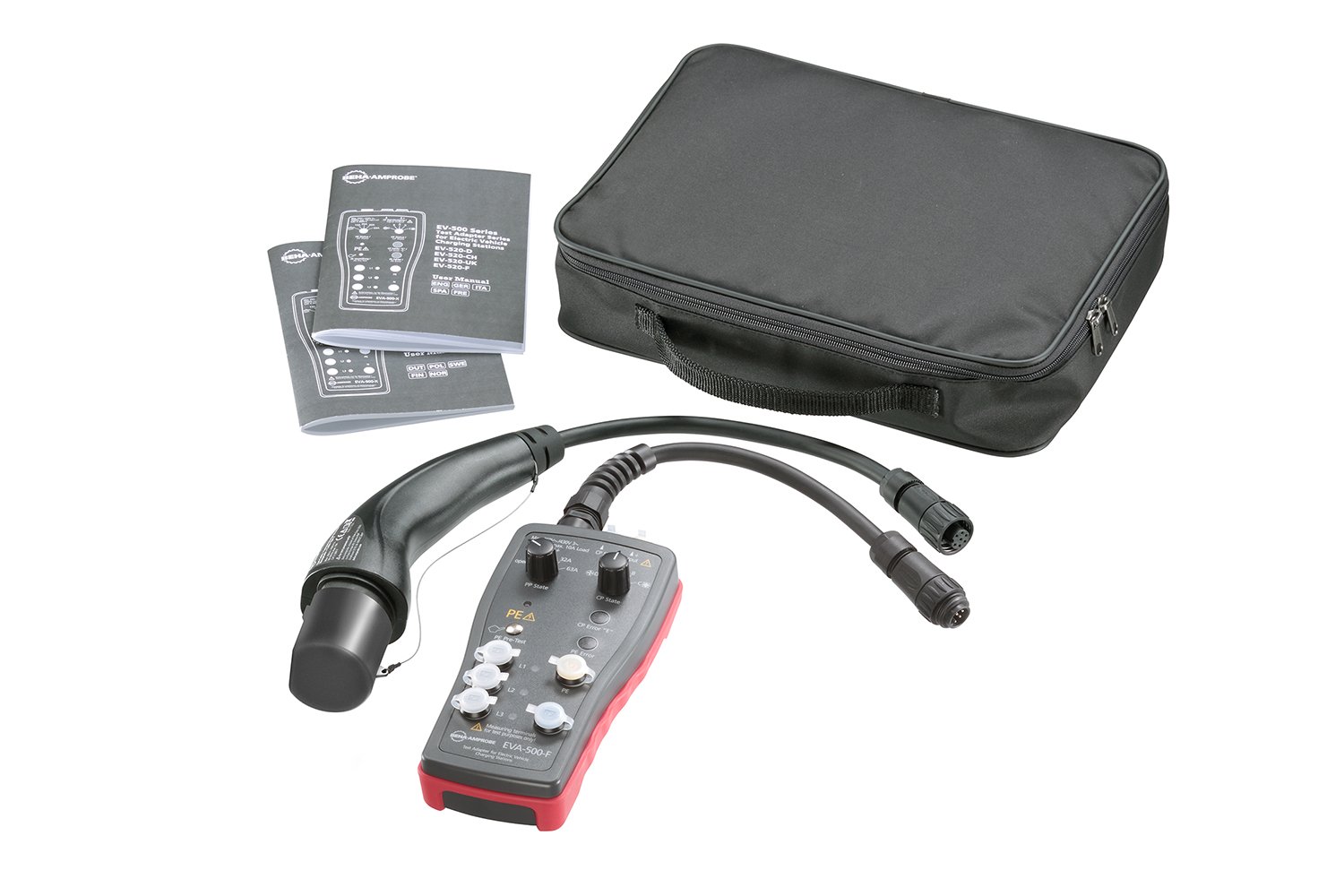

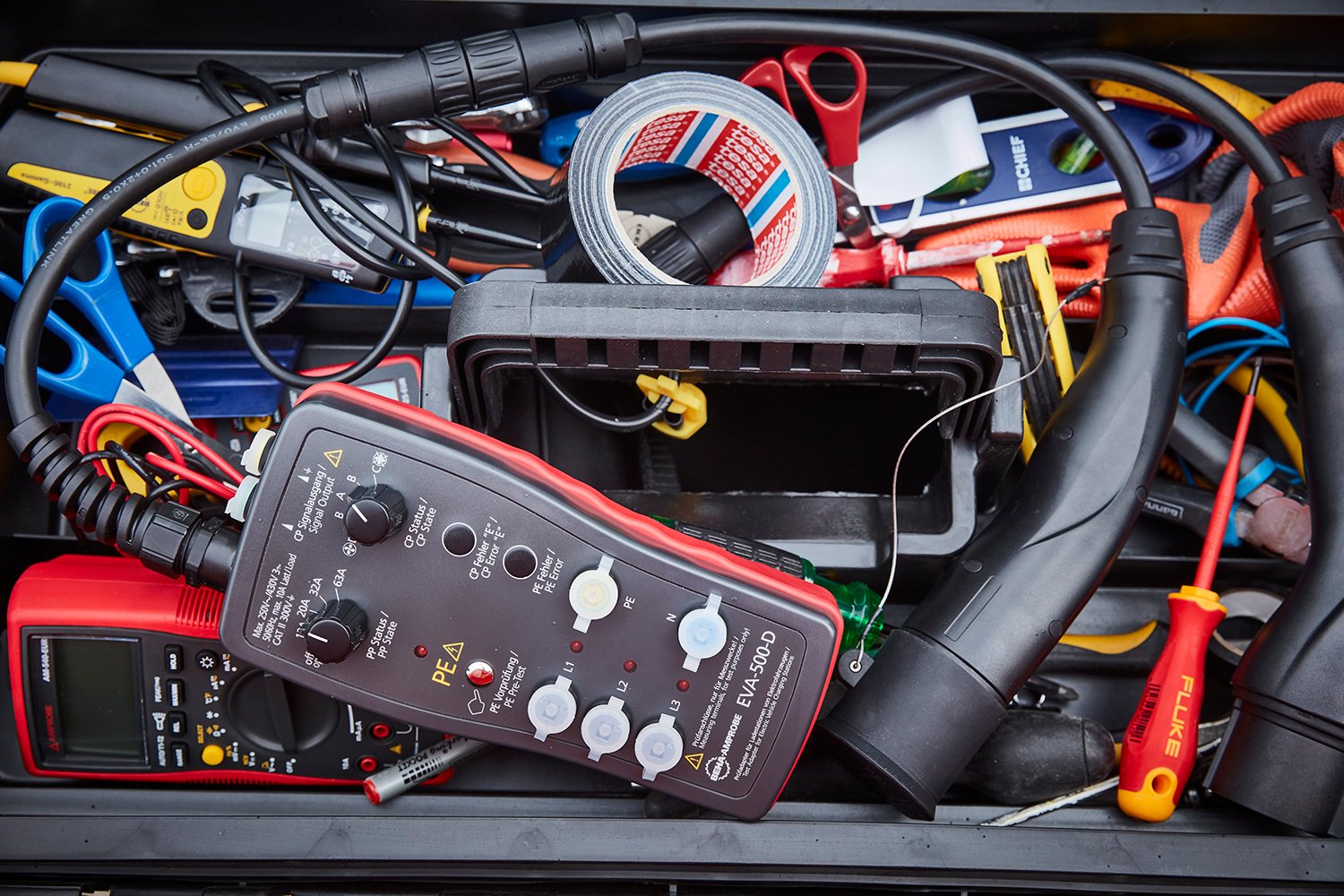

Included in KIT:
EVA-500-F Test Adapter
EVC-20 Test Cable for EV charging station type 2 with socket outlet or fixed cable with vehicle connector
User Manual
Soft Carrying Bag
Type of mains outlet socket: French socket type E
In combination with a **Beha-Amprobe Installation tester** we have the following KITs available:
PROIN-100-EUR KIT3: PROIN-100-EUR + EV-520-F Kit Article no. 5083390
PROIN-200-EUR KIT3: PROIN-200-EUR + EV-520-F Kit Article no. 5083408
In combination with the **Fluke 1664 FC Installation Multifunction Tester** the following KIT is available:
1664 TypeE-EV KIT: FLUKE FLK-1664FC SCH + EV-520-F Article no. 5105325

Article No. EVA

Where to Buy

Product Overview

Get access to the socket-outlets of a charging station to perform safety and functional tests, while simulate presence of an electrical vehicle The EV-500 Series Test Adapter Kits are designed to test function and safety of charging stations mode 3 for AC charging. The Adapter Kit allows you to conduct tests in combination with appropriate test instruments like an installation tester (for example the Beha-Amprobe ProInstall Series).
