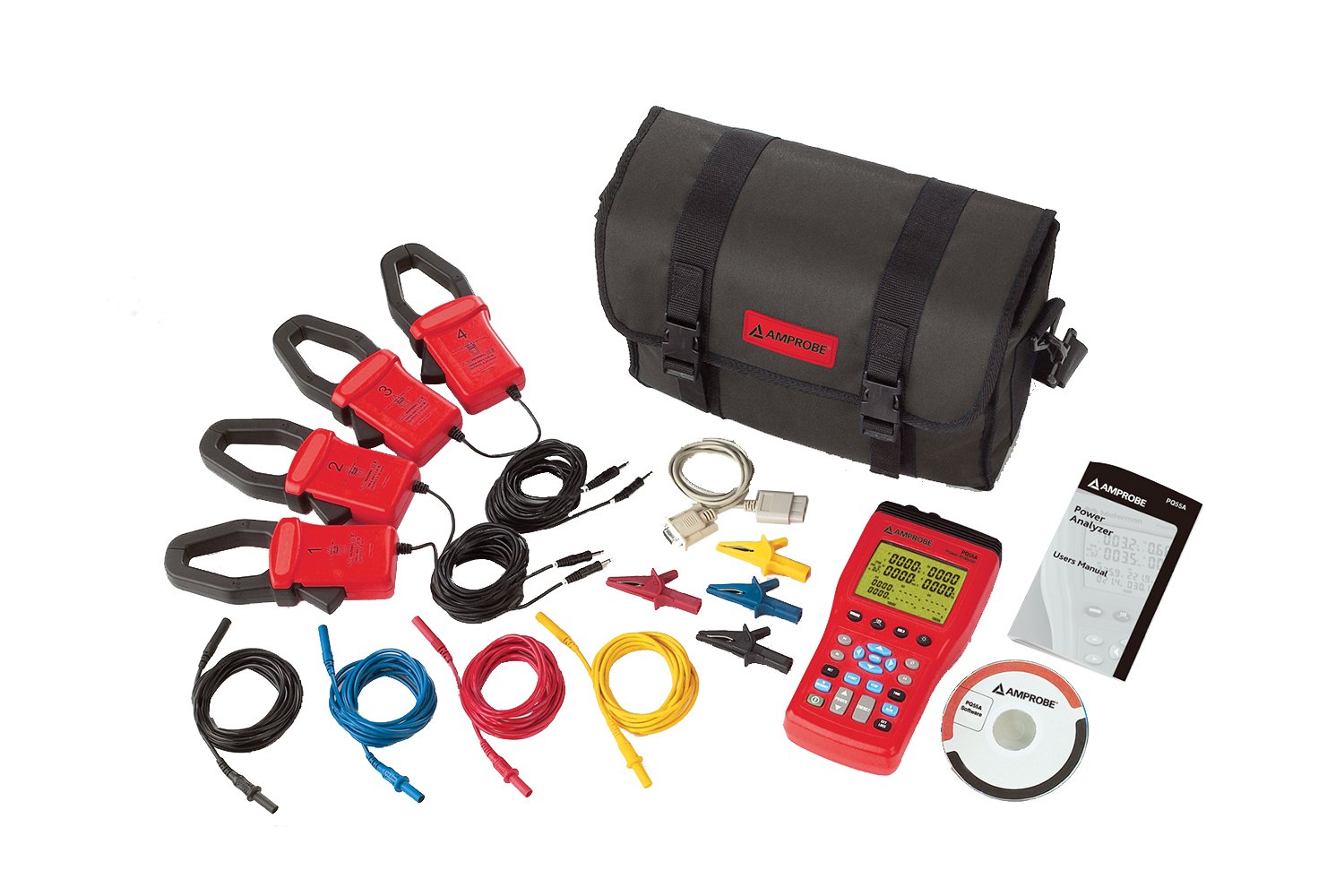

PQ55A
Key Features
Functions
- Comprehensive real-time monitoring, recording and analysis of 3-phase systems
- Voltage measurement (true RMS)
- Current measurement (true RMS)
- Power factor measurement
- Phase angle measurement
- Power analysis (active, apparent and reactive power)
- 4. Current clamp for neutral line current measurement

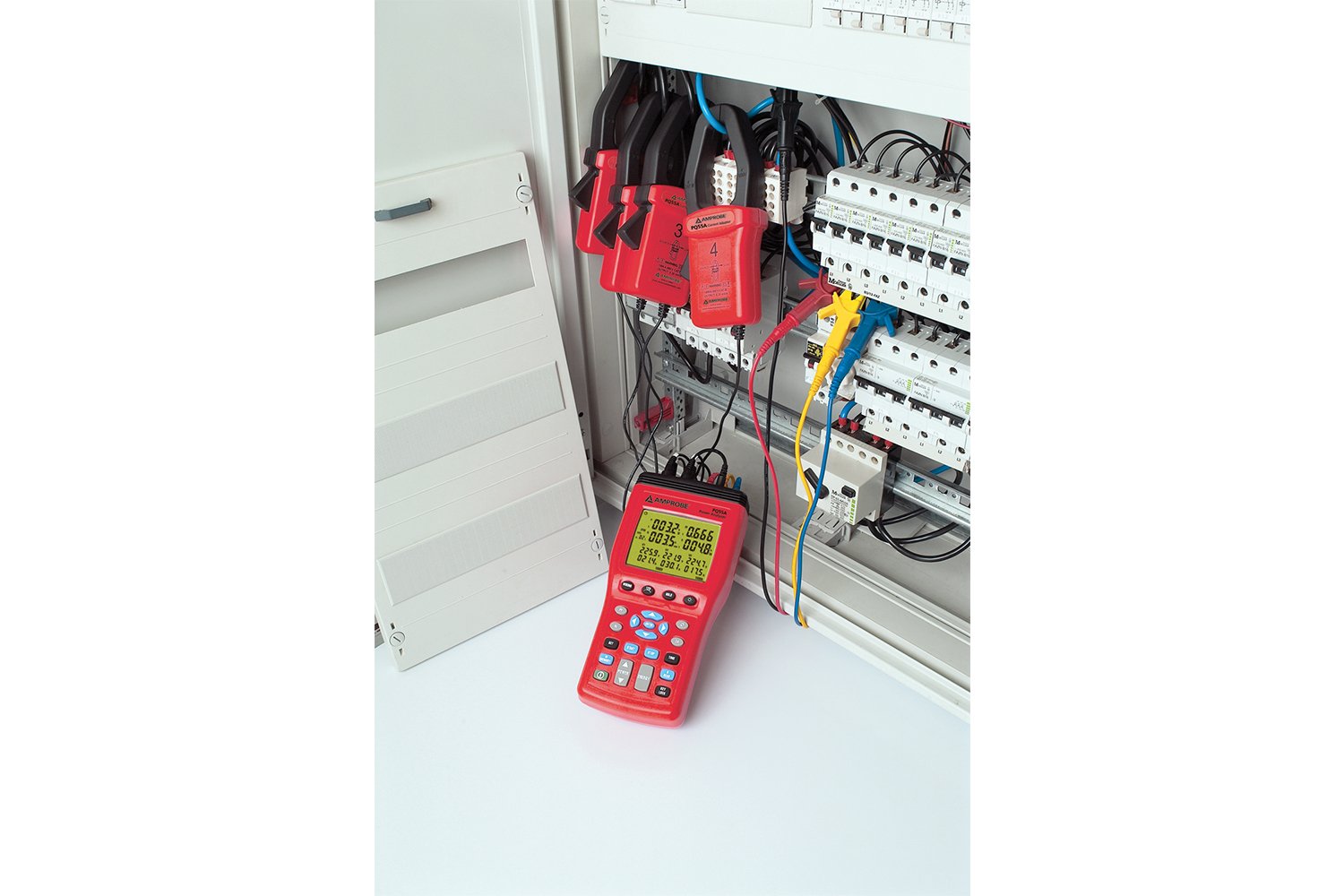

- Suitable for use in housing construction, offices and small businesses
Product information
- 3-phase power and energy analyser
- Internal 512 kB data logger for long-term monitoring
- Internal measurement memory for max. 99 individual readings
- Multi-functional measured value display for all input signals
- Power supply via batteries or external mains adapter
- Current clamps 3…1000 A, jaw opening 40 mm
- Data transfer via optically isolated RS-232 interface
- Software for data analysis included
Article No. 3037739
