LAN-1
Key Features
Functions
- Testing wiring faults of LAN cables
- Detection of cable breaks, short circuits, reversed and split pairs
- Check of shielding
Product information
- LAN Cable Tester
- Test pin configuration for:
- 10/100 base
- 10 base-2 cables
- RJ45 cables
- AT&T 258A cables
- EIA / TIA 568A/568B cables
- Token ring cables

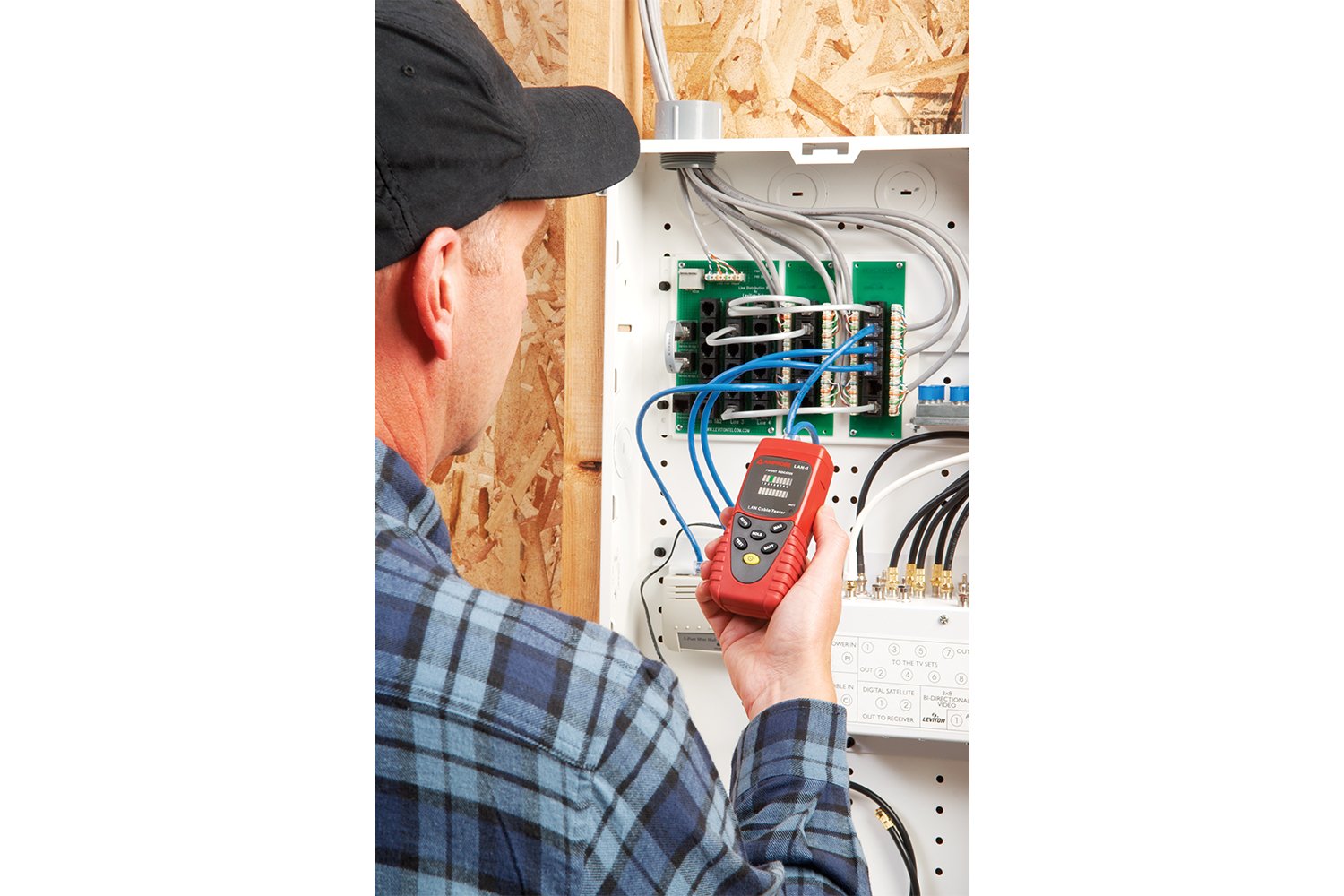

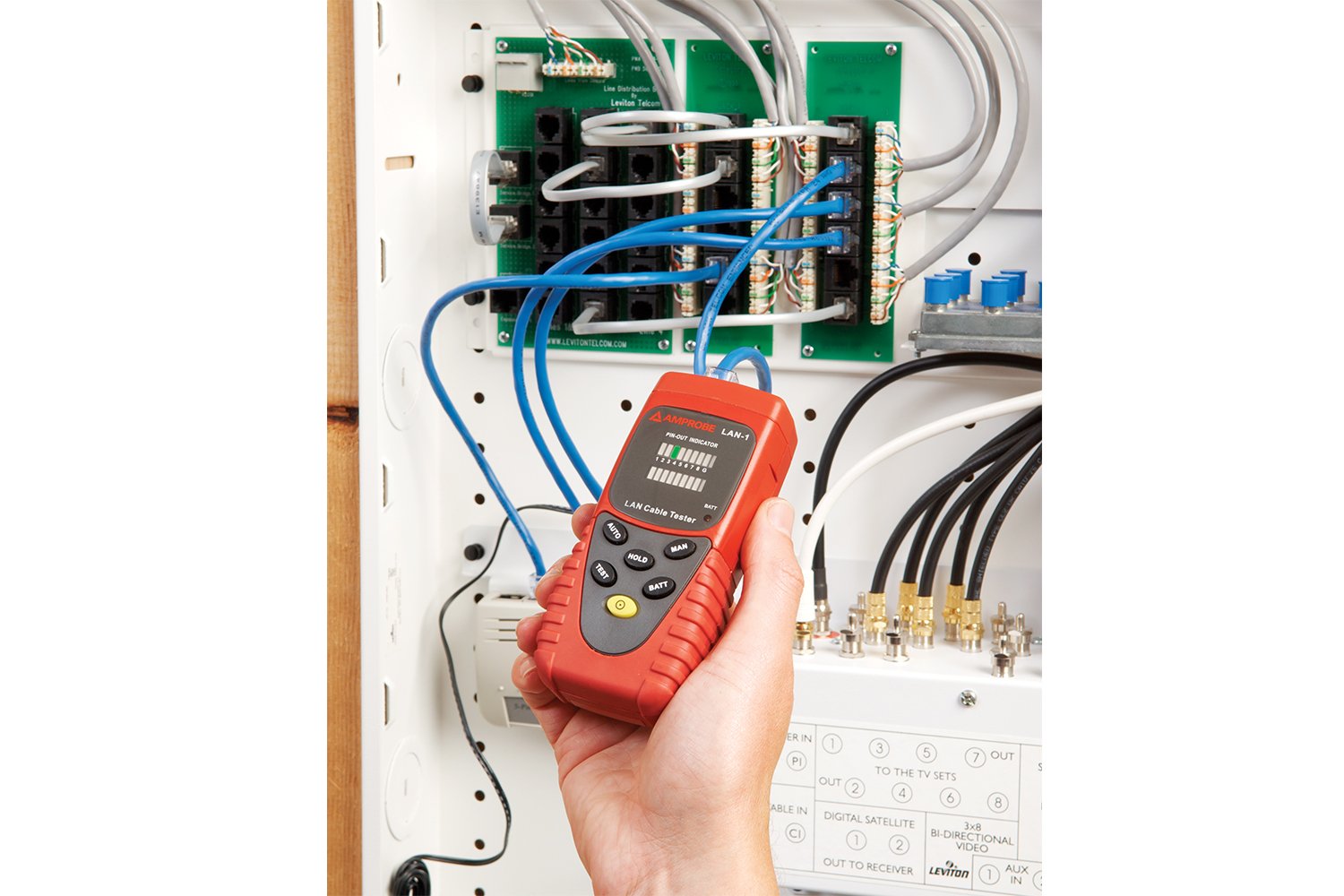

- Testing installed cable on wall plate or the patch panels by using an external coding plug
- Testing a cable loop or remote testing with a coding plug
- Acoustic error display
Product highlights
- Automatic and manual test procedure
- Recognition of split pairs
Article No. 3052401
Where to BuyProduct Overview

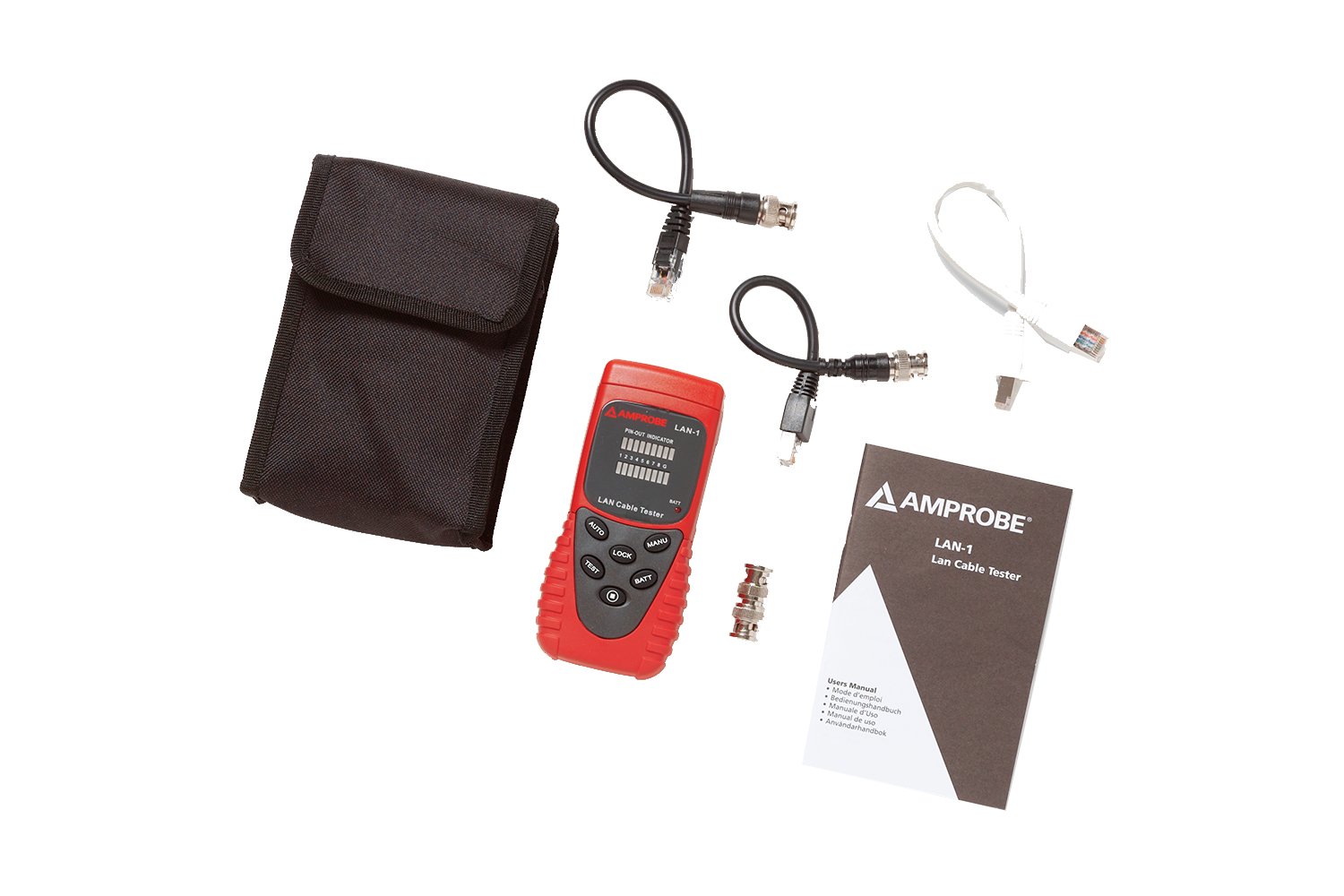

The LAN-1 Cable Tester is designed for testing opens, shorts and miswired cable installations. It is designed to work with various data cables and connectors. This cable tester provides a quick go / no-go LED display of the wiring and connection of item under test. You can either step through the test cable wiring one at a time or have the unit automatically pulse through the pin-outs and display the results.
