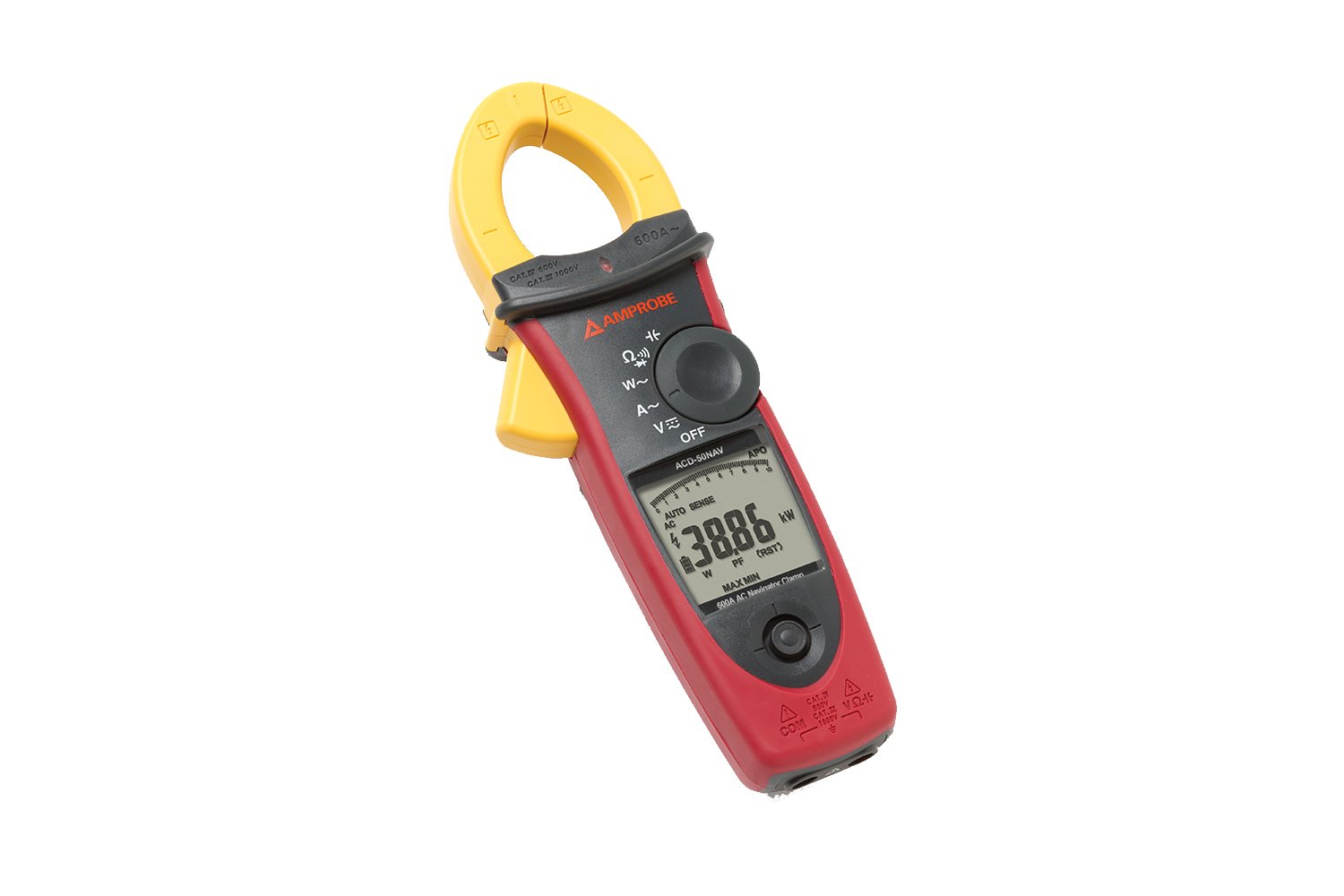

ACD-50NAV
Key Features
Functions
- Current, voltage and resistance measurement
- Continuity beeper
- Capacitance and frequency measurement
- Measurement of active power
- Measuring the power factor cos
- Harmonics measurement for current and voltage values (up to the 25th harmonic)
- Measurement of total harmonic distortion (THD)
- Measurement of inrush current for motors
Product information
- CAT IV Navigatorâ„¢ Power Clamp Meter 600 A (AC) TRMS
- Automatic and manual range selection
- Integrated measurement memory (MIN/MAX and Data Hold)
- Peak value memory (Peak Hold)
- Rotary field measurement
- Low pass filter for measurement of frequency converters
- Large digit display with backlit display and analog bar graph
- Jaw opening 37 mm
- Auto Power Off
Product highlights
- AC/DC true RMS measurement (TRMS)
- Automatic flashlight function on opening the jaws
- Non-contact voltage detection
- Functions can be selected via a joystick
Article No. 3729945
Where to BuyProduct Overview
Easy to use navigation for precise measurementsComplete with a full range of diagnostic capabilities including phase sequence, power and power factor, total harmonics distortion and individual harmonics, inrush current and low pass filter, the Beha-Amprobe Navigator Clamp serves as a first line of defense for spot checking and verifying system conditions before deploying more specialized tools -- or incurring additional costs. It is rated CAT IV 600 V, CAT III 1000 V meter with voltage measurement up to 1000 V AC/DC. The innovative navigation system eliminates confusing push buttons, and replaces them with a single joystick allowing the user to select functions directly on the display.
